Product -> Connector -> Aviation Circle Connector -> GX16 Aviation type male socket

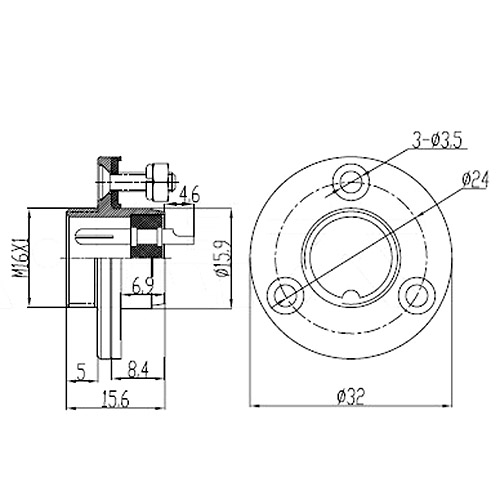

Features and Spacifications: - Circle flange mount. - Pin Quantity: 2/3/4/5/6/7/8/9 pins - Rated Voltage/Current : 7A(2,3,4,5 pins) or 5A(6,7,8,9 pins) /220V - Opreation Limit Voltage :AC 200V.rms - Withstand Voltage: AC 1500V .rms - Insulation Resistence: Min. 1500 Mohm - Contact Resistance : 5 mohm - Shell materials: Zinc Alloy, nickel plated. - Pin materials: Copper, Gold/silver plated. - Insulator materials: Bakelite. - Mating cycle: min. 500 times.

Sub-Part Number Choice: -2,3,4,5,6,7,8,9: with 2 pins to 9 pins. -G: Gold plated pins.
